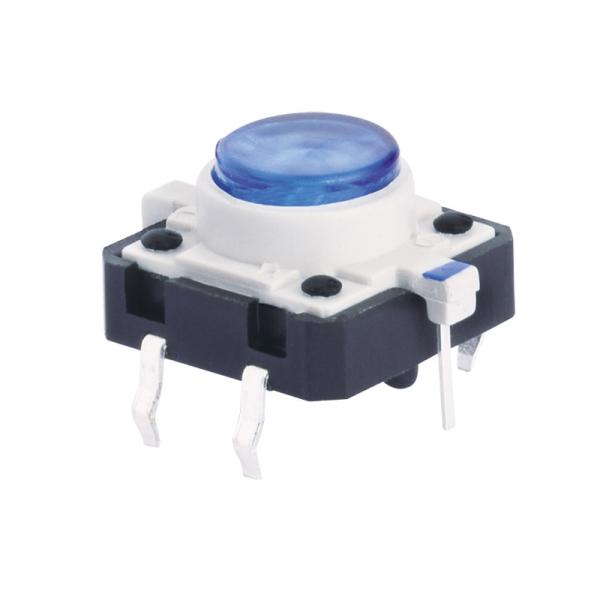

    15x15 Sculptured Cap Illuminated Push Button Switch For Console

    Ask Lasest Price
    Brand Name : KKG
    Model Number : TL1230
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 15 - 20 days
    • Product Details
    • Company Profile

    15x15 Sculptured Cap Illuminated Push Button Switch For Console

    Illuminated Tactile Switch,15x15 Sculptured Cap Illuminated Push Button Switch For Console,Tact Switch with Led




    Illuminated tact switch is an electrical equipment switch, which belongs to one of the passive components.
    It can not be used alone. It can only cooperate with the active components to form a set of control system,
    and its role can be brought into play.


    Lamp switches'Features


    1. High sensitive,sounds silvery,feeling and rhythm are perfect;


    2. With a fixed-stand and covers in many kinds of structure and color


    3. It can be mounted with single color led and double color or 3 colors led according to preference;


    4. It can be assembled in different ways: DIP⪪ with Pushbutton and tact for operating.


    Materials


    Cap: ABS or PC (polycarbonate)
    Actuator: Polyamide (PA66 or PPA)
    Housing: Fibre glass reinforced PA
    Contact dome: Stainless steel, phosphor copper with silver or gold plated
    Stationary contacts and terminals: Brass with silver or gold plated
    Switch's Specification
    Electrical Rating
    30mA, 30VDC
    Life Expectancy
    50,000 / 100,000 / 200,000 / 300,000 / 500,000 cycles
    Contact Resistance
    ≤50mΩ
    Insulation Resistance
    ≥100MΩ at 250VDC for 1 min.
    Dielectric Strength
    250VAC for 1 min.
    Operating Temperature
    -25°C to +75°C
    Relative Humidity
    45% to 85%
    Salt Spray Test
    NSS 48hrs or customized
    Operating Force
    130±50gf / 160±50gf / 200±50gf / 260±50gf / 300±60gf /350±60gf
    Travel
    0.25±0.10mm
    Function
    SPST, OFF-(ON), Momentary
    Bounce Time
    ≤5 mS

    LED Specifications


    Color
    Forward Current (mA)
    Forward Voltage
    (V) at 20mA
    Luminous Intensity
    (mcd)
    Mon.
    Max.
    Red
    20
    1.95
    2.5
    1000
    Yellow
    20
    2.0
    2.5
    1200
    Green
    20
    2.1
    2.5
    300
    Blue
    20
    2.9
    4.0
    1200
    White
    20
    3.2
    4.0
    1800
    Pure Green
    20
    3.2
    4.0
    2000



    The led tact switch is suitable for TV,DVD,instruments and meter equipment,audio apparatus
