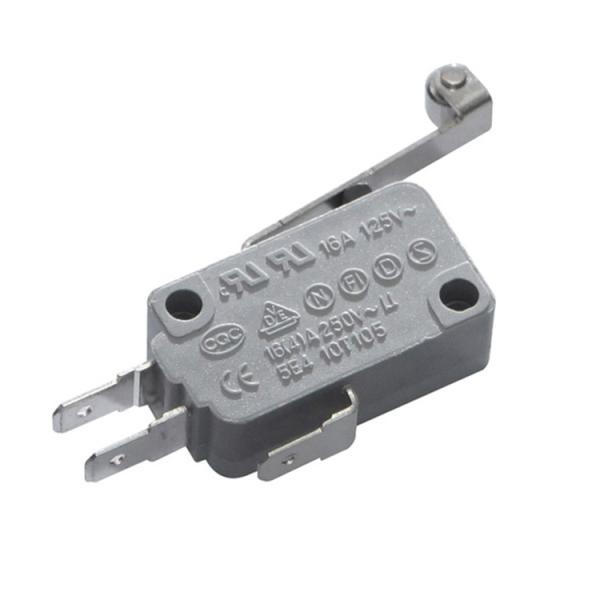

16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body

    Buy cheap 16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body from wholesalers

    Buy cheap 16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body from wholesalers
    • Buy cheap 16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body from wholesalers

    16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body

    Ask Lasest Price
    Brand Name : KKG
    Model Number : KW3A-16ZSW5-B200
    Price : Negotiate
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 7days
    • Product Details
    • Company Profile

    16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body

    Micro Momentary Switch, Free Samples Available High Quality 16(4)A 250VAC ,Miniature Snap Action Switch,Micro Switch


    Micro Switch, Travel&Touch Mouse Swit, Micro Switch,Free Samples Available High quality 16(4)A 250VAC Roller Lever KW3A Micro Switch With Kc, Limit&Detector Switch


    Micro Limit switch is a kind of pursuit of reliability, safety of small basic switch, mainly used in

    computer mouse,car mouse,car electronic products, communication equipment, military products,

    testing instruments, gas water heater, gas cooker,small home appliances


    Micro-switches' Features&Material


    Waterproof and dustproof (IP67) design, small size and compact structure. High reliability.The

    terminal blocks are complete.Equipped with various forms of operating handles with global

    safety certification.A variety of installation dimensions meet different installation requirements.


    Product Specification

    Mechanical (60 times/minute)
    2,000,000 cycles
    Electrical (25 times/minute)
    50,000 cycles
    Temperature degree
    T85, T105, T125,T150 and T200
    Protection degree
    IP40
    Contact resistance
    30mΩ (initial value)
    Insulation resistance
    100MΩ (500V DC)
    Dielectric strength
    Terminal to terminal
    1000V AC, 50-60Hz, 1 minute
    Terminal to ground
    3750V AC, 50-60Hz, 1 minute
    Vibration resistance
    10-55Hz, 1.5mm double amplitude
    Operating speed
    0.1mm-1m/second (related with actuator forms)
    Shock-resistance
    Destruction
    OF >0.5N:1000m/S2, OF ≤0.5:400m/S2
    Malfunction
    OF >0.5N:200m/S2, OF ≤0.5N:100m/S2

    16A 250VAC Mini Momentary Switch With Thermosetting Plastic Body

    The micro switch is suitable for cars, shared bicycles, phones, communicatio equipment, electric

    toothbrushes,toys,household appliances, electric controllers, etc.



    EMS: need 10-15 business days to reach your side

    UPS: special express for North America,need 3-5 working days

    DHL: normally 3-5 business days could reach your side

    FEDEX: normally 3-10 business days could reach US and European

    or By Ocean & By Air

    Service:

    WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.

    If the product received is not as DESCRIBED, a replacement will be issued.



    KKG Electronics (Taiwan) Co., Ltd. is a dedicated switch, socket and other components r & D
    and manufacturing company, its products are mainly used in consumer electronics, home
    entertainment products, mobile communications products, automotive electronics, medical
    equipment products. By the customer's affirmation. Since the establishment of the company
    in 1998, the company has been with the development of electronic components. During this
    period, the company has won many awards such as ISO9001 and quality management
    industry excellence Award. Designated as "quality Excellence" factory, in the harsh environment
    of fierce domestic competition, we protect our leadership position and reputation in order to meet
    new challenges.




    1. KKG factory with high standard in product quality control;

    2. We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.

    3. Our customers from all over the world, like US, UK,Japan, Germany, Argentina, Mexico, Singapore

    4. One-stop Service for Customers



    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally

    registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30-100% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?
    A: Generally, it will take 2 to 20 days after receiving your advance payment. The specific delivery

    time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the

    sample cost and the courier cost.



    For more information kindly contact as below :


    Contact person: Miss Vicky Xie


    Email:xyy@kkg


    Tel: 0086-0769-82036866


    Whatapp: 133777850385


    website: www.kkg.tw
